Hybrid Servo Stepper Motor

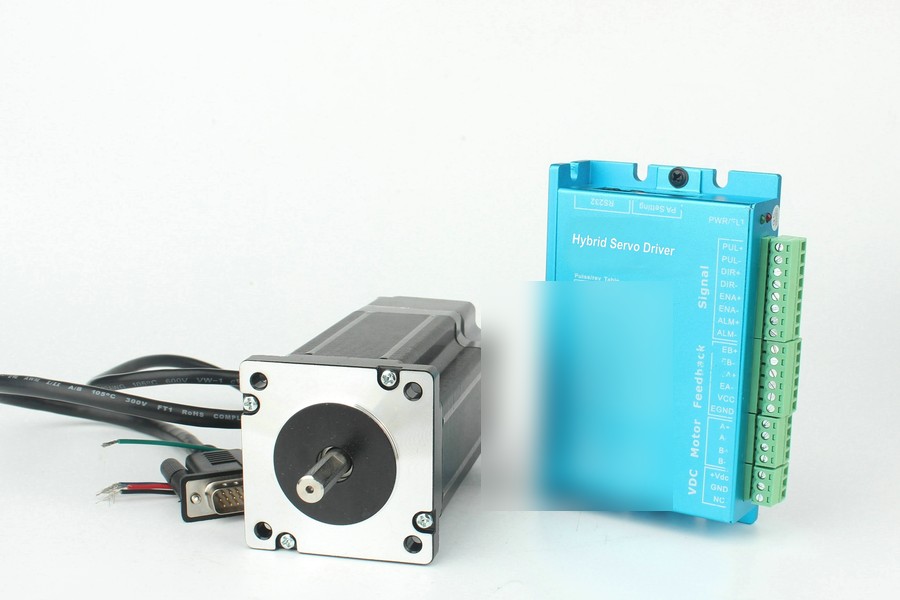

60mm 2 NEMA24 2 Phase Hybrid Servo Stepper Motor

Closed-loop hybrid servo steppers with encoder feedback — servo-grade accuracy that eliminates lost steps while keeping stepper simplicity.

60mm 2 NEMA24 2 Phase Hybrid Servo Stepper Motor

Datasheets & Drawings

Key specifications

Frame60 mm (NEMA 24)
Step angle1.8° (2-phase, encoder feedback)
Holding torque3.1 – 4.0 N·m
Rated current4.0 A / phase
Body length88 – 100 mm
Mass1.4 – 2.0 kg

Representative models; special versions built to customer specification. Full electrical data in the datasheet.
